Mitsubishi Electric PLC CPU Module Product Description
Mitsubishi Electric's PLC CPU modules are the core of its automation control systems. The product lineup covers a wide range of needs, from compact devices to large-scale process control, and is mainly divided into five series: MELSEC iQ-R, MELSEC iQ-F, MELSEC-L, MELSEC-Q, and MELSEC-F.
Core Series Overview
| Series | Positioning | Key Features | Typical Applications |
|---|---|---|---|
| MELSEC iQ-R | Next-generation PAC (Programmable Automation Controller), medium- to large-scale control | High-speed system bus, program capacity from 10K to 1200K steps, supports dedicated CPUs for process, safety, motion, etc. | Large-scale systems requiring high speed and high precision, such as automotive, semiconductor, and process industries |
| MELSEC iQ-F | Next-generation compact controller, small- to medium-scale control | Built-in Ethernet, analog, positioning, and other functions; instruction speed as fast as 34 ns | Small equipment, stand-alone machines, IoT edge control |
| MELSEC-L | Base-less modular controller, space-saving | Integrated CPU with built-in I/O; instruction speed as fast as 9.5 ns; maximum program capacity 260K steps | Equipment with limited space, small and medium-sized production lines |
| MELSEC-Q | Multi-CPU architecture controller, medium- to large-scale control | Supports multi-CPU cooperation for process, C language, motion, robotics, etc. | Systems requiring complex calculations or multi-axis motion |
| MELSEC-F | Classic compact controller | Integrated power supply, CPU, and I/O; highly cost-effective | Simple logic control, small machinery |
Main Features and Functions
Mitsubishi PLC CPU modules share the following common technical characteristics:
-
High-Speed Processing Capability: The basic instruction processing speed of the iQ-R series can reach 0.98 ns (e.g., R04CPU), the L series can reach 9.5 ns, and the iQ-F series is 34 ns, meeting the real-time requirements of high-speed production lines and precision control.
-
Flexible Memory Capacity: Program capacity ranges from 10K steps for entry-level iQ-R models to 1200K steps for process CPUs. Users can choose flexibly according to system scale.
-
Rich Built-in Functions: Modern CPU modules generally include a built-in Ethernet port, USB interface, and SD memory card slot. Some models also integrate analog I/O, high-speed counters, and positioning functions, reducing the need for additional modules.
-
Dedicated CPU Expansion: For specific needs, Mitsubishi offers dedicated modules such as process CPUs (for advanced PID loop control), safety CPUs (compliant with ISO 13849-1 PL e / IEC 61508 SIL 3), and motion CPUs (controlling up to 32 axes).
Representative Technical Specifications
The following lists representative model specifications for selected series:

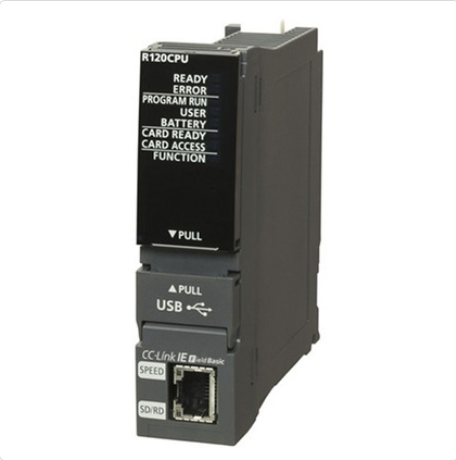

MELSEC iQ-R Series (Selected Models)
| Model | Program Capacity | Basic Instruction Processing Speed (LD) | Main Interfaces |
|---|---|---|---|
| R00CPU | 10K steps | 31.3 ns | USB, Ethernet |
| R04CPU | 40K steps | 0.98 ns | USB, Ethernet |
| R16CPU | 160K steps | 0.98 ns | USB, Ethernet |
| R32PCPU | 320K steps | 0.98 ns | Dedicated for process control |
MELSEC-L Series (Selected Models)
| Model | Program Capacity | Basic Instruction Processing Speed (LD) | Main Interfaces |
|---|---|---|---|
| L02SCPU | 20K steps | 60 ns | USB, RS-232 |
| L02CPU | 20K steps | 40 ns | USB, Ethernet |
| L06CPU | 60K steps | 9.5 ns | USB, Ethernet |
Application Areas
Mitsubishi PLC CPU modules are widely used in various industrial automation scenarios:
-
Manufacturing: Production line control in automotive, semiconductor, electronics, packaging, food and beverage, and other industries.
-
Process Industries: Process monitoring and PID control in chemical, pharmaceutical, cosmetics, and other industries. The iQ-R process CPU can simultaneously perform advanced PID and high-speed sequence control.
-
Infrastructure: Redundant control systems for social infrastructure such as water treatment, power, and transportation.
-
Machine Control: Equipment requiring high-speed positioning and motion control, such as machine tools, injection molding machines, and textile machinery.
Overall, Mitsubishi Electric offers a comprehensive selection of PLC CPU modules through the MELSEC series. The iQ-R is aimed at high-performance and large-scale systems, the iQ-F and L series focus on compactness and integration, the Q series provides multi-CPU cooperation capability, and the F series focuses on economy and practicality. When selecting a model, comprehensive consideration should be given to the project's specific requirements for processing speed, program capacity, built-in functions, and special control (process, safety, motion).
